Technical Insight: Mercedes introduces a mechanical third suspension element

One of the innovations that surprised more on the W11 regards the front suspension, with returning to a third mechanical element on front suspension.

by Rosario Giuliana
3 years ago
A A
0
Technical Insight: Mercedes introduces a mechanical third suspension element
Share on FacebookShare on Twitter

Mercedes have made some major modifications to the W11 compared to last year’s W10, tweaking many technical details of the championship-winning car.

But the major talking point was of course the dual-axis-steering system (better known as DAS), which took the paddock completely by surprise, and somewhat the FIA which believed the system would be too hard to develop.

To facilitate this change, Mercedes have made some front suspension changes.

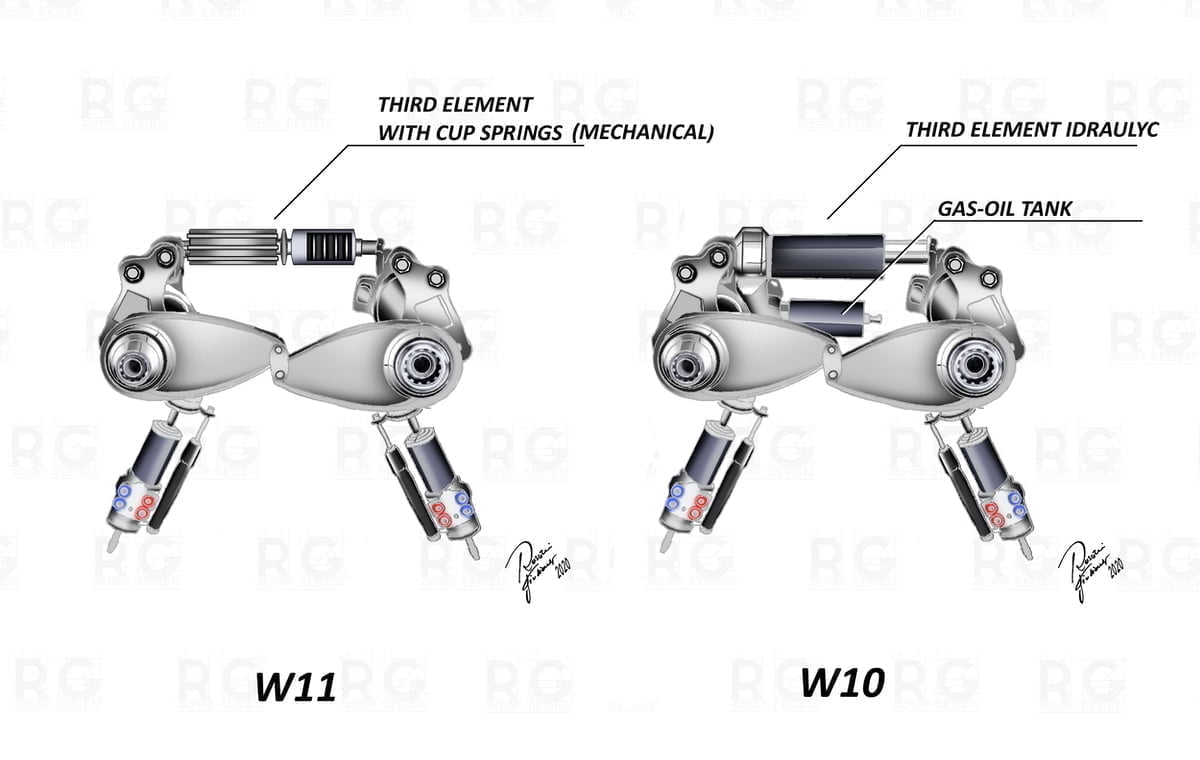

In previous seasons, Mercedes has always used a third hydraulic element on the push rod suspension (see drawing above), with the struts directly connected to the oil/gas piston of the upper shock absorber.
