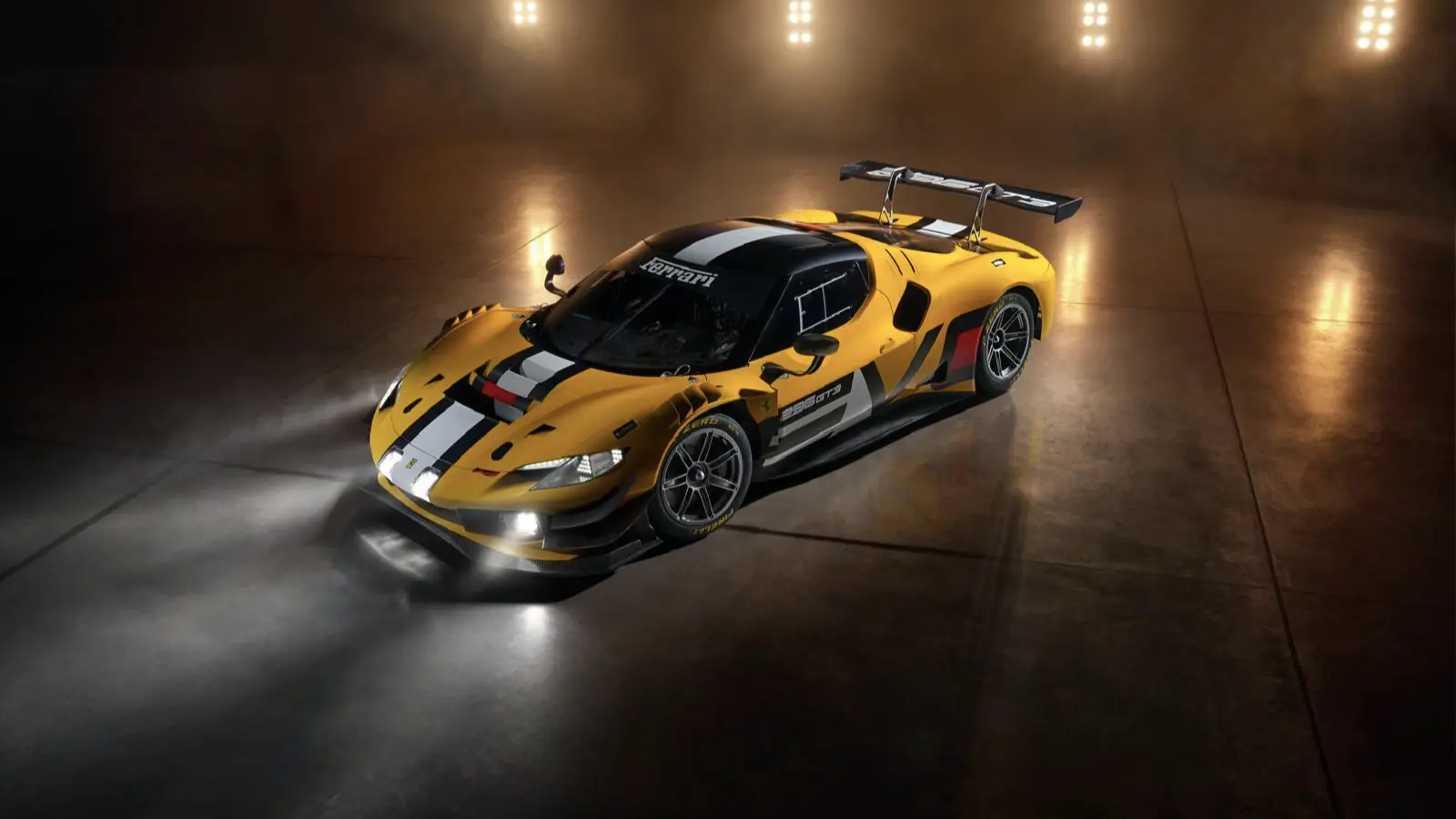

Explore the angles of the new Ferrari 296 GT3 Evo, unveiled at this year’s running of the Spa 24 Hours and will debut in 2026.
Technical Specifications
ENGINE
Type F163CE, 6 cyl. V 120°, 4 valves per cylinder, 2992 cm3, GDI Turbo
Bore/stroke: 88 x 82 mm
Maximum power: approx. 600 hp* (447 kW) at 7250 rpm
Maximum torque: approx. 710 Nm* at 5500 rpm
* Subject to BoP
GEARBOX
Transverse sequential gearbox, 6 speeds
E-clutch, electronic clutch actuator with steering wheel paddles
Magnesium gearbox with integrated oil recovery tank
CHASSIS
Wheelbase: 1726 mm front / 1710 mm rear
Width: 2050 mm max (without mirrors)
Wheelbase: 2660 mm
Dry weight: 1250 kg
Front and rear suspension: double overlapping triangle, tubular steel suspension arms
5-way adjustable shock absorbers
Wheels: front 12.5‘ x 18’, rear 13‘ x 18’
Tyres: front 30/68/18, rear 31/71/18
Brake discs: front 400×36, rear 332×32
Brake callipers: front 6 pistons, rear 4 pistons
Brake pads: front 30 mm, rear 26.5 mm
